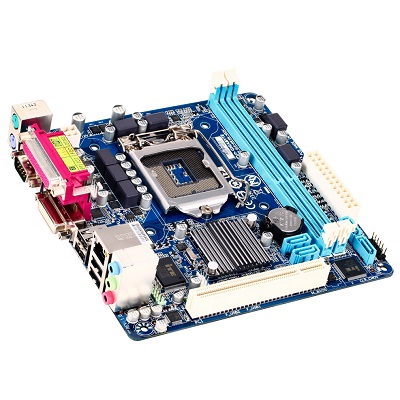

GIGABYTE ZÁKLADNÍ DESKA H61N - D2V, INTEL H61, 1X

Informace o produktu

Tento produkt již nelze objednat, byl vyřazen z aktuální nabídky.

Název produktu:

GIGABYTE ZÁKLADNÍ DESKA H61N - D2V, INTEL H61, 1X PCIE X16, DDR3 1600, SATA II, USB 2.0, GLAN, DVI, 8CH AUDIO, MINI ITX, SC1155

Výrobce:

GIGABYTE

Kód:

53986

PN:

H61N-D2V

Zařazení

• Produkty: Základní desky
• Produkty: Základní desky / Základní desky

Parametry produktu

Popis produktu

1.Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
2.L3 cache varies with CPU
3.(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)



Čipset

1.Intel® H61 Express



Paměť

1.2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
2.Dual channel memory architecture
3.Support for DDR3 1600/1333/1066 MHz memory modules
* To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.
4.Support for non-ECC memory modules
5.Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.
6.* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Please refer "Memory Support List" for more information.)



Integrovaná grafická karta

Integrated Graphics Processor: 1.1 x DVI-I port, supporting a maximum resolution of 1920x1200



Zvuk

1.2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
2.Realtek ALC887 codec
3.High Definition Audio



LAN

1.1 x Realtek GbE LAN chip (10/100/1000 Mbit)



Rozšiřující sloty

1.1 x PCI



Rozhraní pro ukládání dat

Čispet: 1.4 x SATA 3Gb/s connectors (SATA2 0~3) supporting up to 4 SATA 3Gb/s devices



USB

Čipset: 1.Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)



Interní I / O konektory

1.1 x Clear CMOS jumper
2.2 x USB 2.0/1.1 headers
3.1 x system fan header
4.4 x SATA 3Gb/s connectors
5.1 x front panel audio header
6.1 x 24-pin ATX main power connector
7.1 x front panel header
8.1 x CPU fan header
9.1 x 4-pin ATX 12V power connector



Konektory na zadním panelu

1.1 x RJ-45 port
2.1 x DVI-I port
3.1 x parallel port
4.1 x PS/2 keyboard port
5.1 x PS/2 mouse port
6.1 x serial port
7.4 x USB 2.0/1.1
8.3 x audio jacks (Line In/Line Out/MIC)



I / O řadič

1.iTE I/O Controller Chip



Monitorování HW

1.CPU/System fan speed detection
2.CPU/System fan speed control
*Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
3.System voltage detection
4.CPU/System temperature detection



BIOS

1.PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
2.Use of licensed AMI EFI BIOS
3.2 x 32 Mbit flash
4.Supports DualBIOS™



Přidaný software

1.Norton Internet Security (OEM version)



Operační systém

1.Support for Microsoft® Windows 7/Vista/XP



Velikost

1.Mini-ITX Form Factor; 17.0cm x 17.0cm

Upozornění: Obrázek a informace o produktu mají pouze informativní charakter.
