MSI ZÁKLADNÍ DESKA A75MA - P35 AMD A75, DDR3 1600,

Informace o produktu

Tento produkt již nelze objednat, byl vyřazen z aktuální nabídky.

Název produktu:

MSI ZÁKLADNÍ DESKA A75MA - P35 AMD A75, DDR3 1600, VGA + PCIE X16, SATA III RAID, USB 3.0, GLAN, DVI

Výrobce:

MICROSTAR

Kód:

50573

PN:

A75MA-P35

Zařazení

• Produkty: Základní desky
• Produkty: Základní desky / Základní desky

Parametry produktu

Popis produktu

Chipset

AMD® A75 Chipset



Main Memory

Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600 DRAM, 16GB Max



Slots

1 PCI Express gen2 x16 slot
2 PCIE x1 slots
1 PCI slots



On-Board SATA

6 SATA 6Gb/s ports by AMD® A75
- Supports storage and data transfers at up to 6Gb/s
- SATA1~6 ports support RAID 0/1/10 modes by AMD® A75




Audio

Chipset integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec




LAN

Realtek PCI-E GbLAN controller RTL8111E
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a




USB 3.0

2 USB 3.0 rear ports by AMD® A75
1 USB 3.0 onboard pinheader by AMD® A75




Internal I/O Connectors

- 1 x ATX 24-pin power connector
- 1 x ATX 4-pin 12V CPU power connector
- CPU x 1 / System x 2 FAN connectors
- 1 x Front panel audio connector
- 1 x Front panel connector
- 2 x USB 2.0 connectors
- 1 x USB 3.0 connector
- 6 x Serial ATA 6Gb/s connectors
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper
- 1 x SPDIF-out connector
- 1 x Chassis Intrusion connector

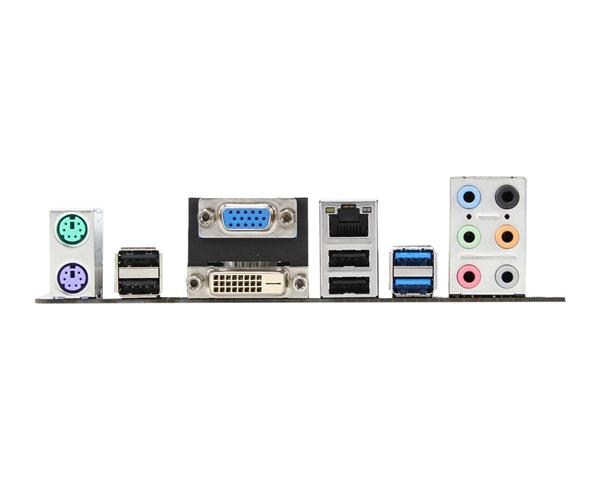

Back Panel I/O Ports

- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Graphic Card port
- 1 x DVI-D port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN jack
- 1 x 6 in 1 audio jack






Dimension

24.4cm(L) x 21.5cm(W) Micro-ATX Form Factor

Upozornění: Obrázek a informace o produktu mají pouze informativní charakter.
