MSI ZÁKLADNÍ DESKA PH61A - P35 (B3) INTEL H61, PCI

Informace o produktu

Tento produkt již nelze objednat, byl vyřazen z aktuální nabídky.

Název produktu:

MSI ZÁKLADNÍ DESKA PH61A - P35 (B3) INTEL H61, PCIE X16, DDR3 1333, SATA III, USB 3.0, GLAN, DVI, 8C

Výrobce:

MICROSTAR

Kód:

50572

PN:

PH61A-P35 (B3)

Zařazení

• Produkty: Základní desky
• Produkty: Základní desky / Základní desky

Parametry produktu

Popis produktu

CPU

• Supports Intel® Sandy Bridge processors in LGA1155 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.



Chipset

• Intel® H61 (B3) Chipset



Main Memory

• Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333 DRAM, 16GB Max
- Supports Dual channel mode



Slots

• 1 PCI Express gen2 x16 slot
• 2 PCI Express gen2 x1 slots
• 3 PCI slots



On-Board SATA

• SATAII controller integrated in Intel® H61 (B3) chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA1~4) by H61 (B3) PCH

• SATAIII controller integrated in Asmedia® 1061 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA5~6)



USB 3.0

• 2 USB 3.0 ports by ASMedia® ASM1042



Audio

• Chipset integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec



LAN

• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E.



Internal I/O Connectors

- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU x 1 / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 2 x USB 2.0 connectors
- 4 x Serial ATAII connectors
- 2 x Serial ATAIII connectors
- 1 x Clear CMOS jumper
- 1 x SPDIF-out connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Parallel port connector

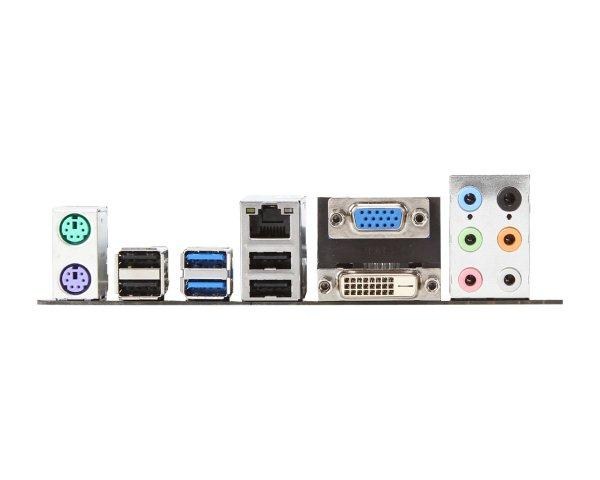

Back Panel I/O Ports

- 1 x PS/2 Keyboard port
- 1 x PS/2 Mouse port
- 2 x USB 3.0 ports
- 4 x USB 2.0 ports
- 1 x Graphic Card port
- 1 x DVI-D port
- 1 x RJ45 LAN Jack
- 1 x 6 in 1 audio jack

MSI Reminds You...
• VGA, DVI ports can only work with CPUs with GPUs core inside.




BIOS

• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.



Dimension

• 30.5cm(L) x 20.5cm(W) ATX Form Factor

Mounting

• 6 mounting holes.

Upozornění: Obrázek a informace o produktu mají pouze informativní charakter.
