| Podle CPU: | Intel |
| Podle patice: | Socket 1155 |
| : | 2 |
| Podle typu paměti: | DDR3 |
| Podle slotu grafické karty: | PCIE |
| Podle RAID: | Ne |
| Podle formátu: | mATX |
| : | 1 |
| Podle HDMI: | Ne |
| Podle display portu: | Ne |
CPU
• Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® H61 (B3) Chipset
Main Memory
• Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333 DRAM, 16GB Max
- Supports Dual channel mode
Slots
• 1 PCI Express gen2 x16 slot
• 2 PCI Express gen2 x1 slots
On-Board SATA
• SATAII controller integrated in Intel® H61 (B3) chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA1~4) by H61 (B3) PCH
Audio
• Chipset integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec
LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E.
Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU x 1 / System x 2 FAN connectors
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 3 x USB 2.0 connector
- 4 x Serial ATAII connectors
- 1 x Clear CMOS jumper
- 1 x SPDIF-out connector
- 1 x Serial port connector
- 1 x Parallel port connector

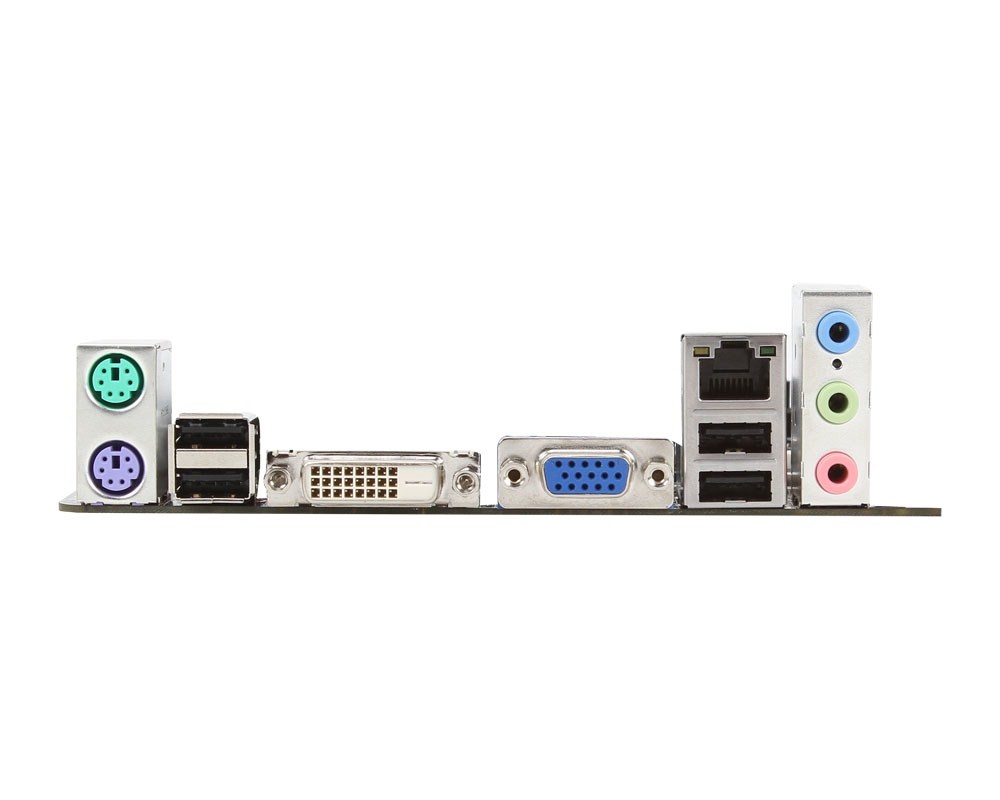

Back Panel I/O Ports
- 1 x PS/2 Mouse/Keyboard port
- 4 x USB 2.0 ports
- 1 x Graphic Card port
- 1 x DVI-D port
- 1 x RJ45 LAN Jack
- 1 x 3 in 1 audio jack
MSI Reminds You...
• VGA, DVI ports can only work with CPUs with GPUs core inside.
BIOS
• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
Dimension
• 24.5cm(L) x 19.5cm(W) M-ATX Form Factor
