| Podle CPU: | Intel |
| Podle patice: | Socket 1155 |
| : | 4 |
| Podle typu paměti: | DDR3 |
| Podle slotu grafické karty: | PCIE |
| Podle RAID: | Ne |
| Podle formátu: | mATX |
| : | 1 |
| Podle HDMI: | Ano |
| Podle display portu: | Ano |

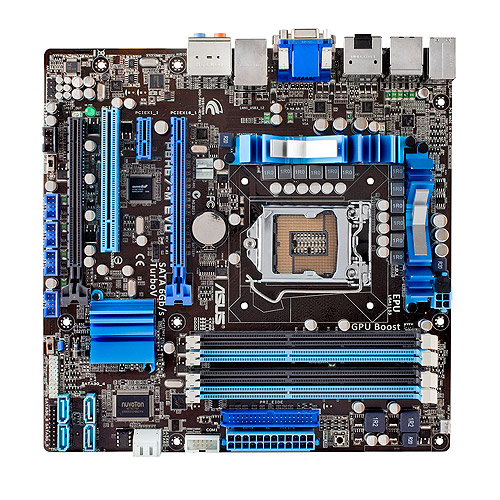

CPU Intel® Socket 1155 for Intel® 2nd Generation Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/
Support Intel® 32nm CPU
Supports Intel® Turbo Boost Technology 2.0
*The Turbo Boost Thchnology 2.0 support depends on the CPU types.
Chipset Intel® H67 Express Chipset
Memory 4 x DIMM, Max. 32 GB, DDR3 1333/1066 Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* According to Intel® SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
* Please refer to www.asus.com or user manual for Memory QVL.
Expansion Slots 1 x PCIe 2.0 x16 [blue] (at x16 mode)
1 x PCIe 2.0 x16 [black] (at x4 mode, compatible with PCIe x1, x2 and x4 devices)
2 x PCI
VGA Multi-VGA output support: HDMI, DVI-D, RGB port
Supports HDMI with max. resolution 1920 x 1200@60Hz
Supports DVI with max. resolution 1920 x 1200@60Hz
Supports RGB with max. resolution 2048 x 1536@75Hz
Maximum shared memory of 1748 MB
Multi-GPU Support Supports ATI® Quad-GPU CrossFireX™ Technology
Storage Intel® H67 Express Chipset
2 xSATA 6.0 Gb/s ports (gray)
4 xSATA 3.0 Gb/s ports (blue)
Intel Rapid Storage Technology Support RAID 0,1,5,10
VIA VT6415 PATA controller
1 xUltraDMA 133/100 for up to 2 PATA devices
LAN Realtek® 8111E Gigabit LAN controller
Audio Realtek® ALC892 8-Channel High Definition Audio CODEC
- BD Audio Layer Content Protection
- Supports Jack-Detection, Multi-streaming and Front Panel Jack-Retasking
- Optical S/PDIF out port at mid-board & back I/O
USB USB 3.0 controller:
- 2 x USB 3.0/2.0 ports (blue, at the back I/O)
Intel® H67 Express Chipset:
- 14 x USB 2.0/1.1 ports (10 ports at mid-board, 4 ports at back panel)
ASUS Unique Features ASUS TurboV EVO
- GPU Boost (without switch)
- Auto Tuning* (adopt Fast Mode)
- TurboV
ASUS Power Design
- 4+2 Phase Power Design
ASUS Exclusive Features
- MemOK!
- AI Suite II
- ASUS EFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Protect 3.0 Technology
- ASUS EPU
- Anti-Surge Protection
- Low EMI Solution
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Features Precision Tweaker 2
- vCore: Adjustable CPU voltage at 190-step
- iGPU: Adjustable iGPU voltage at 254-step
- iGPU: Adjustable iGPU voltage at 190-step
- vCCIO: Adjustable I/O voltage at 190-step
- vDRAM Bus: Adjustable Memory voltage at 190-step
- vPCH: Adjustable Chipset voltage at 190-step
- vCPU_PLL: Adjustable CPU & PCH PLL voltage from 1.8V to 1.9V
SFS (Stepless Frequency Selection)
- BCLK/PEG frequency tuning from 80MHz up to 300MHz at 0.1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

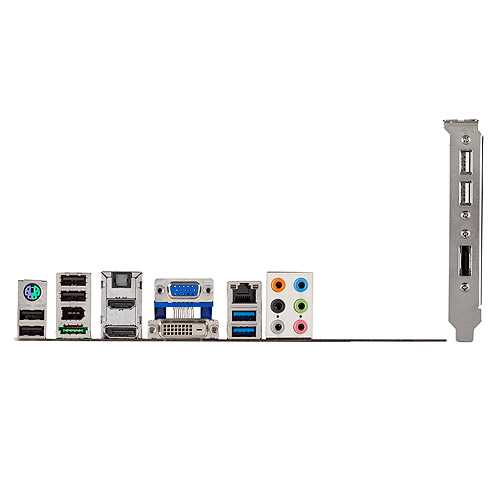

Back Panel I/O Ports 1 x PS/2 Keyboard/Mouse Combo port
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN(RJ45) port(s)
2 x USB 3.0/2.0 ports (blue)
4 x USB 2.0/1.1 ports
1 x S/PDIF Out (Optical)
6 x Audio Jacks
Internal I/O Connectors 5 x USB 2.0/1.1 connector(s) support additional 10 USB ports
1 x MemOK! Button
1 x IDE connector
1 x TPM connector
2 x SATA 6.0Gb/s (gray)
4 x SATA 3.0Gb/s (blue)
1 x CPU Fan connector(s) (4-pin)
1 x Chassis Fan connector(s) (4-pin)
1 x Power Fan connector(s) (3-pin)
1 x S/PDIF Out connector
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
1 x Front panel audio connector
1 x System Panel
COM connector
1 x Clear CMOS jumper
BIOS 32 Mb Flash ROM , EFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories User's manual
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
2 x SATA 6.0Gb/s cables
Support Disc Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form Factor uATX Form Factor
9.6 inch x 9.6 inch ( 24.5 cm x 24.5 cm )
