| Podle CPU: | Intel |
| Podle patice: | Socket 1156 |
| : | 2 |
| Podle typu paměti: | DDR3 |
| Podle slotu grafické karty: | PCIE |
| Podle RAID: | Ne |
| Podle formátu: | mATX |
| : | 1 |
| Podle HDMI: | Ano |
| Podle display portu: | Ne |
CPU
Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/ Intel® Core™ i3 series processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel® H55 Express Chipset
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 2200+/1800/1600/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To reach DDR3 2200 MHz and above, you are required to use with Intel Core i7/Core i5 CPU without HD Graphics and install a discrete graphics card.
When using Intel Core i5/Core i3/ Pentium CPU with HD Graphics, the maximum memory speed supported is 1666 MHz
* Go to GIGABYTE's website for the latest memory support list.
Onboard Graphics
Integrated in the Chipset:
1 x D-Sub port (Note 2)
1 x DVI-D port (Note 2) (Note 3) (Note 4)
1 x HDMI port(Note 2) (Note 4)
Audio
Realtek ALC888B/892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In
LAN
1 x Realtek RTL8111D/8111E chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5) (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 6)
2 x PCI slots
Multi-Graphics Technology
Support for ATI CrossFireX™ technology(Note 6)
Storage Interface
Chipset:
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
JMicron JMB368 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Chipset:
Integrated in the Chipset
Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector Connectors
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x clearing CMOS jumper

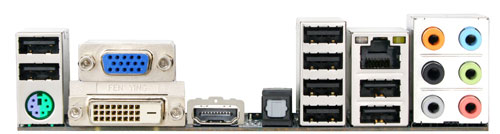

Back Panel Connectors
1 x PS/2 keyboard or PS/2 mouse port
1 x D-Sub port (Note 2)
1 x DVI-D port (Note 2) (Note 3) (Note 4)
1 x HDMI port (Note 2) (Note 4)
1 x optical S/PDIF Out connector
8 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
iTE IT8720 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 7)
BIOS
2 x 64 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
Support for Dynamic Energy Saver™ 2
Support for Smart 6™
Support for Auto Green
Support for Q-Share
Bundle Software
Norton Internet Security (OEM version)
Operating System
Support for Microsoft® Windows 7/Vista/XP
Form Factor
MicroATX Form Factor; 24.4cm x 21.0cm
