| Podle CPU: | Intel |
| Podle patice: | Socket 775 |
| : | 4 |
| Podle typu paměti: | DDR2 |
| Podle slotu grafické karty: | PCIE |
| Podle RAID: | Ano |
| Podle formátu: | ATX |
| : | 1 |
| Podle HDMI: | Ne |
| Podle display portu: | Ne |

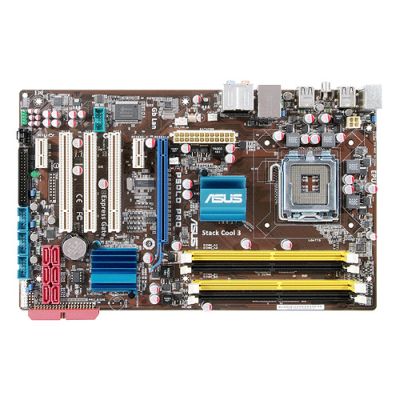

Technické parametry
CPU Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors Support Intel® 45nm Multi-Core CPU
Compatible with Intel® 05B/05A/06 processors
Chipset Intel® P43 / ICH10 with Intel® Fast Memory Access Technology
Front Side Bus 1600(O.C)/1333/1066/800 MHz
Memory 4 x DIMM, Max. 16 GB, DDR2 1066/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Expansion Slots 1 x PCIe x16
2 x PCIe x1
3 x PCI
Storage Southbridge
6 xSATA 3 Gb/s ports
JMicron® JMB368 PATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices
LAN PCIe Gb LAN controller featuring AI NET 2
Audio Realtek ALC 1200, 8-Channel High-Definition Audio CODEC
- Support Jack Detection and Multi-streaming
- Coaxial S/PDIF out ports at back I/O
- ASUS Noise Filter
USB 12 USB 2.0/1.1 ports (6 ports at mid-board, 6ports at back panel)
ASUS Unique Features ASUS Power Saving Solution
- ASUS EPU- 4 Engine
ASUS AI Lifestyle
- ASUS Express Gate
ASUS Quiet Thermal Solution
- ASUS Fan Xpert
ASUS Crystal Sound
- ASUS Noise Filter
ASUS EZ DIY
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features Precision Tweaker
- vDIMM: 5 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 6.25mV increment
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tuning from 667MHz up to 1333MHz for DDR2
- PCI Express frequency tuning from 100MHz up to 180MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features ASUS MyLogo 2

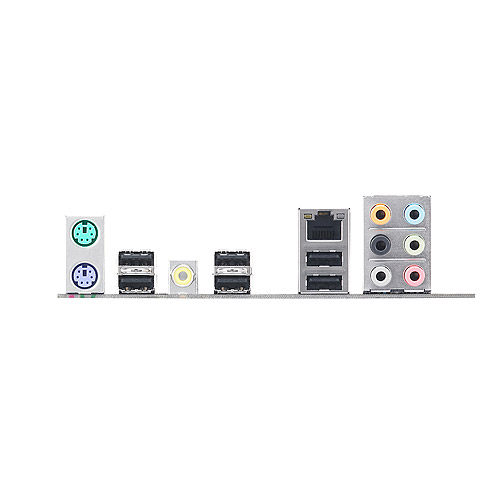

Back Panel I/O Ports 1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out (Coaxial)
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
Internal I/O Connectors 3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x COM connector
6 x SATA connectors
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
System Panel(Q-Connector)
BIOS 8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories User's manual
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
2 x SATA cable(s)
2 in 1 Q-connector
Support Disc Drivers
ASUS PC Probe II
ASUS AI Suite
Anti-virus software (OEM version)
ASUS Update
Form Factor ATX Form Factor
12 inch x 7.6 inch ( 30.5 cm x 19.3 cm )
